Oscillating tungsten carbide snow plow Blade consists of steel segments vulcanized in rubber with steel bushing positioned to facilitate mounting on standard 12 inch centers.The steel segments have been milled in slot shape and brazed with tungsten carbide inserts along the wearing edge.
Application: | Plow the highway,city road. | Origin: | China |
Brand Name: | RAYIWELL | Model Number: | Custom Made |
Type: | customized | Material : | WC+Co,carbon steel |
Product Name: | Oscillating Carbide Blade | Feature: | carbide inserted blades feature longer wear life than any other type of snow plow blade |
Insert Chemical composition: | WC,Co | type: | 48”x6”x7/8”” 36”x6”x7/8” |
standard: | ISO9001:2015 | Output: | 1000pcs/month |
Package Details
Pallet or other standard exporting packages
Description

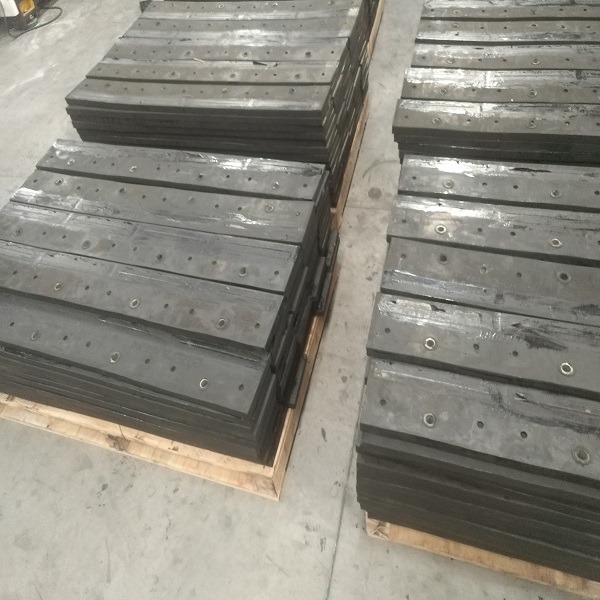

Oscillating Carbide Blade consists of steel segments vulcanized in rubber with steel bushing positioned to facilitate mounting on standard 12 inch centers.The steel segments have been milled slot and brazed with tungsten carbide inserts along the wearing edge.
The overall dimension are approximately 7/8” thick by 6 inches wide and manufactured in 3 or 4 foot lengths.Each 12” length of blade will consist of a speciality profiled,carbide inserted steel segment with an 11/16” ID steel bushing positioned at mounting hole.The entire blade,consisting of 3 or 4 foot segments,is encased in rubber by way of sound,industry standard vulcanizing methods.
Application
Carbide snow plow blades are used on the front, underbody, and wing of a snow plow. Carbide snow plow blades look very similar to traditional steel cutting edges; however, they have a carbide insert brazed into the thickness of the steel or overlayed on the face along the bottom of the blade. Carbide is short for Tungsten Carbide; a metal composed of equal parts tungsten and carbon. Carbide is denser than steel enabling it to be a versatile and durable edge material that provides much better wear resistance properties than a cutting edge made of just steel.
Body Steel Segment

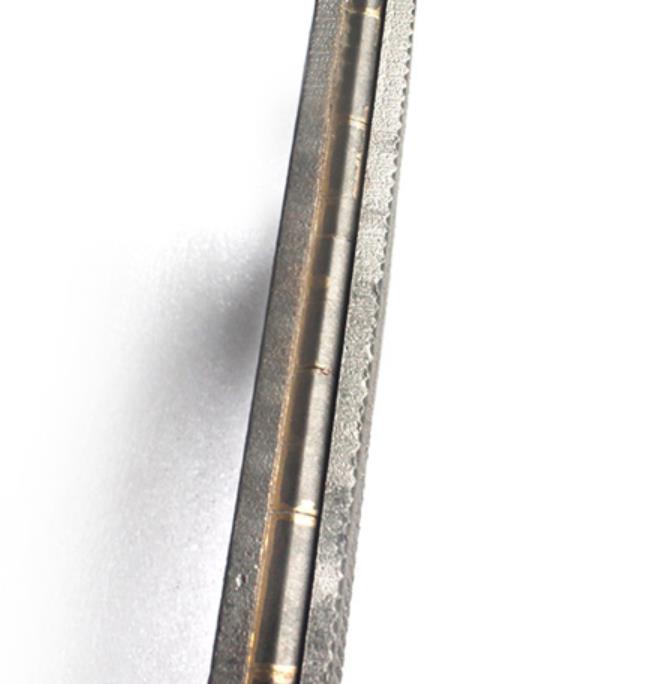

Each steel segment is manufactured from quench and tempered steel plate,profiled to accept the insert in the lower portion and is thinner at the top to allow the segment to be encased in rubber so as not to have direct contact with the snow plow.each segment is milled with a continuous slot along the wearing edge,which is fitted with tungsten carbide inserts that are brazed into place.
Tungsten carbide inserts
The tungsten carbide inserts are high wear resistant grade tungsten carbide.
Tungsten carbide 89% by physical weight
Cobalt:11%-12%
Density:14.35-14.60
Hardness(HRA):87.5-88.8
Transverse rupture strength:351,000-428,000 P.S.I.
Rubber Matrix
Typical physical properties:Ultimate Elongation:582%
100% Modulus:276 P.S.I.
Tensile Strength:3113 P.S.I.
Shore A Durometer:65-70 pts
Tear strength:341 P.S.I.
Compression set:26.5%
Low Temperature Brittleness:No cracks at-40C°
Quality Control
1.All raw materials are tested in terms of density, hardness and TRS before use
2.Every piece of product goes through in-process and final inspection
3.Every batch of product can be traced
